    Mining Industry Mobile Crushing Unit Move Easily Flexible Configuration

    Ask Lasest Price
    Brand Name : YK
    Model Number : 960
    Certification : ISO9001
    Payment Terms : L/C, D/A, D/P, T/T
    Price : negotiable
    • Product Details
    • Company Profile

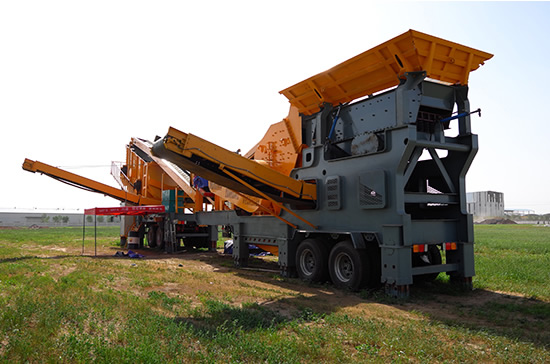

    Mining Industry Mobile Crushing Unit Move Easily Flexible Configuration

    mobile rock crusher,mobile crushing unit,mobile crusher machine


    The Mobile Crushing Plant is not limited by the crushing place, and reduces high material transportation cost. It can crush materials on site or nearly. It is widely used in the industry of mining, metallurgy, building materials, traffic, water conservancy and so on.


    1.Move easily. It can go to the crushing place directly. It can move not only on the smooth road, but also on the bumpy road.
    2.Compact structure and simple operation. Integrative equipment group with trailer save the working area. With generator, motor and control box on the trailer, it can work outdoor easily. Equipped with supporting facilities, it can be installed quickly and conveniently.
    3.Save the cost. By crushing the materials on site, the transportation cost is reduced.
    4.Wide applicability. The crushing plant can work as independent unit or work with other units to form a primary-secondary crushing system or primary-secondary-fine crushing system. It can also work as a production line with the screening equipment according to the requirement of customers (firstly screening then crushing, or firstly crushing then screening.)
    5.Stable performance and convenient maintenance. Equipped with crushers, vibrating feeders, and vibrating screens designed by Great Wall Company Machinery, the mobile crushing plant shows high quality and reliable performance. Materials are delivered by belt conveyors, which is simple to operate and easy to maintain. The machine is featured by low investment and high production efficiency.
    6.Flexible configuration. It can be customized according to customers’ requirement on working site, materials and particle shape. Examples of customized machines include single units, combined units, units with self-discharged belt conveyors.


    Main Specifications of Mobile Cone Crushing Plant

    ModelVibrating screenCone crusherBelt conveyorConfiguration of wheelsCapacity
    (t/h)
    Overall Dimension
    (mm)
    Weight
    (t)
    Y3S1548Y9003YZS1548PY900B650×7MDual-axle30-9013700×2800×570034
    Y3S1848S363YZS1848CZS36B650×7MDual-axle45-16513700×3150×570039
    Y3S1860S513YZS1860CZS51B800×8MTri-axle80-35015200×3150×640055
    Y3S2160H2203YZS2160HP220B1000×8MTri-axle100-43015200×3500×645057

    Main Specifications of Mobile Jaw Crushing Plant

    ModelVibrating feederJaw crusherBelt conveyorConfiguration of wheelsCapacity
    (t/h)
    Overall Dimension
    (mm)
    Weight
    (t)
    YG725E46GZD850×3000PE400×600B650×7MSingle-аxle15-6010500×2800×370025
    YG938E57GZD960×3800PE500×750B650×7.5MDual-axle40-10013000×2900×410032
    YG938E69GZD960×3800PE600×900B800×8MDual-axle60-14013200×2900×460042
    YG1142E710GZD1100×4200PE750×1060B1000×9MTri-axle80-23015000×2900×570055
    YG1349E912GZD1300×4900PE900×1200B1200×11MQuad-аxle140-32017000×3100×580081

    Main Specifications of Mobile Impact Crushing Plant

    ModelVibrating screenImpact crusherBelt conveyorConfiguration of wheelsCapacity
    (t/h)
    Overall Dimension
    (mm)
    Weight (t)
    Y3S1548F10103YZS1548PF1010B650×7MDual-axle50-8012700×2800×570035
    Y3S1848F12103YZS1848PF1210B650×7MDual-axle70-13013500×3150×600041
    Y3S1860F12143YZS1860PF1214B800×8MTri-axle90-18015500×3150×640046
    Y3S2160F13153YZS2160PF1315B800×8MTri-axle120-25016200×3500×670057
