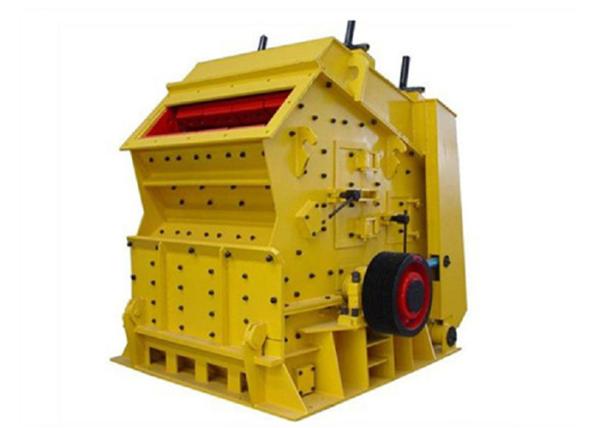

High Performance Stone Impact Crusher / Limestone Impact Crusher Low Energy Consumption

Henan Yukuang Machinery Manufacturing Co., Ltd
Contact Now
    Buy cheap High Performance Stone Impact Crusher / Limestone Impact Crusher Low Energy Consumption from wholesalers

    Buy cheap High Performance Stone Impact Crusher / Limestone Impact Crusher Low Energy Consumption from wholesalers
    • Buy cheap High Performance Stone Impact Crusher / Limestone Impact Crusher Low Energy Consumption from wholesalers
    • Buy cheap High Performance Stone Impact Crusher / Limestone Impact Crusher Low Energy Consumption from wholesalers

    High Performance Stone Impact Crusher / Limestone Impact Crusher Low Energy Consumption

    Ask Lasest Price
    Brand Name : YK
    Model Number : PF-1315
    Certification : ISO9001
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : Within 30 days after receipt of the equipment's deposit
    • Product Details
    • Company Profile

    High Performance Stone Impact Crusher / Limestone Impact Crusher Low Energy Consumption

    High Performance Crusher Machine, Limestone Impact Crusher Price, Impact Crusher For Sale, Impact Stone Crusher


    Product Description

    Impact crusher is mainly used to crush many kinds of large, medium, small hard size materials with compression resistance no more than 350Mpa,in the fields of highway, reservoir, railway, airport and other fields that need rock with cubic shape.



    Application
    Impact crusher features in high capacity, high performance, high reduction ratio, cubic shape and low flakiness. The single rotor impact crusher has the characteristics of simple structure, big reduction ratio, low energy consumption, high output, light weight, cubic physique end product. It can supply the uses of industry sectors such as dressing, chemistry, cement, building, fire-proof material, ceramics, glass to use in hitting garrulous and each kind of medium degree of hardness using of in broken bits material, for example: limestone, chamotte, slag, coke, coal and so on. Compare to hammer crusher, impact crusher has bigger reduction ratio and can fully use the high speed impact energy of entire rotor.



    Features

    • High efficiency and energy conservation;
    • No-board connection;
    • Chrome hammer and special impact plat
    • Cubical shape of final product and the output size is adjustable
    • Easy maintenance.


    Technical Parameter


    ModelSpecifications
    (mm)
    Feed opening
    (mm)
    Max feeding side length
    (mm)
    Capacity
    (t/h)
    Power
    (kw)
    Total weight
    (t)
    Dimensions
    (LxWxH)
    (mm)
    PF-0607ф644x740320x77010010-203041500x1450x1500
    PF-0807ф850x700400x73030015-3030-458.131900x1850x1500
    PF-1007ф1000x700400x73030030-7045122330x1660x2300
    PF-1010ф1000x1050400x108035050-9055152370x1700x2390
    PF-1210ф1250x1050400x108035070-13011017.72680x2160x2800
    PF-1214ф1250x1400400x1430350100-18013222.42650x2460x2800
    PF-1315ф1320x1500860x1520500130-250220273180x2720x2920
    PF-1320ф1320x2000860x2030500160-350300303200x3790x3100
