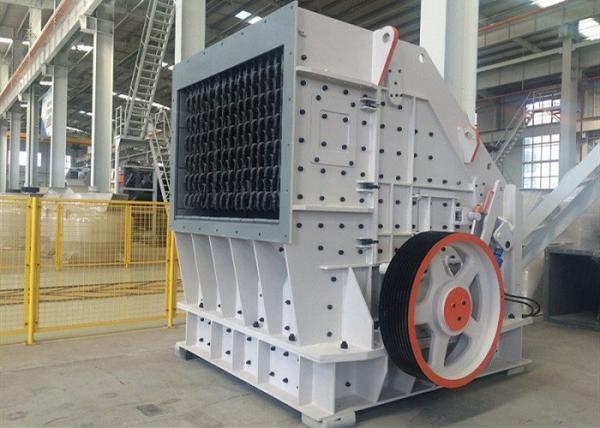

PFS Impact Crusher, Full-Automatic Adjuster, Durable Stone Crushing
Machine, Impact Crusher Machine Sand Maker
Product Description
PFS Impact Crusher is widely used in white fuel, expressway,
artificial sand, ore crushing industries,etc. The Impact Crusher is
suitable for crushing various ores and rocks, such as granite,
marble, basalt, iron ore, cobble, shale, bluestone, coal,
cobblestone, construction material.
Advantages
PFS Impact Crusher, a new type impact crusher developed on the base
of foreign technology and the latest processing technology, has the
following advantages compared with general impact crusher. 1.
Adopting hydraulic top device and maintenance lifting design can
achieve the change of board hammer and other wearing parts in a
short time, which reduce halt and maintenance time and cost of
maintenance. 2. Adopting full-automatic hydraulic adjuster between
rotor and impact plate enable flexibly discharging size adjustment.
3. Adopting heavy-duty rotor welded from high quality steel plate
(according thicken the web of rotor block and heighten board hammer
up to rotor body to change the combining form between board hammer
and rotor spindle, and then increasing the weight of the rotor),
enable its owns greater rotatory inertia. That means, with the same
rotate speed, it has stronger crushing force, high efficiency. 4.
Adopting bigger specification bearing with stronger bearing
capacity. 5. Bearing pedestal adopts overall forging steel, which
can perfectly fit the crusher frame and increase the radial force
of bearing pedestal; Excellent waterproof and dust proof effect can
protect the bearing. 6. Adopting wedge to fix the plate hammer,
ensure roller to be firm under high-speed rotation. Reliable work,
convenient changing. 7. Plate hammer adopts crescent, which can
ensure the material to crush vertically with great impact strength,
high crushing efficiency. It has a bigger impact face than linear
type plate hammer, more durable.
Features
1.Adopting full-automatic hydraulic adjuster
Adopting full-automatic hydraulic adjuster between rotor and impact
plate enable flexibly discharging size adjustment.
2.Adopting wedge to fix the plate hammer
Adopting wedge to fix the plate hammer, ensure roller to be firm
under high-speed rotation. Reliable work, convenient changing.
3.Heavy Rotor Design
Heavy rotor design is more durable, bigger crushing force. Strict
quality control, high stability, longer service life.
4.Hydraulic top device
Hydraulic top device and maintenance lifting design can achieve the
change of board hammer and other wearing parts in a short time.
Technical Parameters
| Model | AdjustableSizeof Discharge Opening (mm) | Max.Feeding Size(mm) | Capacity(t/h) | Power(kw) | Dimension (L×W×H)mm |
| PFS1010 | 20-100 | 600 | 100-200 | 90-110 | 2800×1925×2305 |
| PFS1210 | 20-100 | 900 | 140-285 | 110-160 | 2871×1967×2600 |
| PFS1214 | 20-100 | 900 | 200-400 | 160-200 | 2871×2307×2600 |
| PFS1317 | 20-200 | 950 | 250-500 | 200-315 | 3175×2781×2800 |
| PFS1420 | 20-200 | 1000 | 400-600 | 315-375 | 3582×3205×3118 |
| PFS1620 | 20-200 | 1200 | 550-700 | 400-500 | 4056×3395×3356 |
