CH Series Impact Crusher, Primary Impact Crusher, Simple Design
Impact Sand Making Machine, Impact Rock Crusher
Product Description

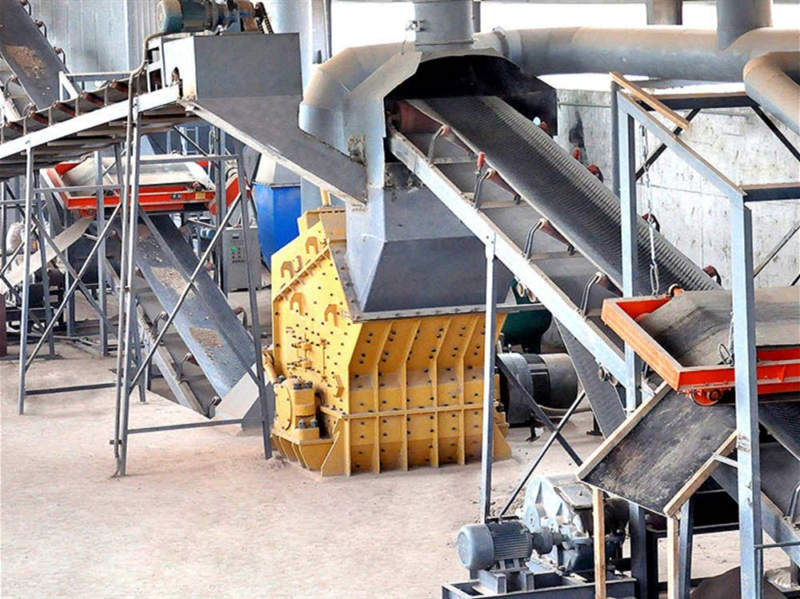

CH series impact crusher is manufactured on the basis of advanced
foreign technology and domestic applications. With the advantages
of more human-oriented, simple design, reasonable structure, better
cavity and large capacity, CH series impact crusher can crush all
kinds of ores in primary and secondary crushing process.
Materials:Granite, limestone, concrete, lime, plaster, limestone,
etc.
Applications:Mining, metallurgy, construction, highway, railroad,
water conservancy, etc.
Features
1. Heavy type rotor with optimized design, reasonable structure and
enhancing rotational inertia can take finite element endurance
analysis. It can achieve higher crushing ratio, better crushing and
abrasion resistance performance.
2. Standard scale board can increases interchangeability, which
will decrease spare part repertory and variety, and make
replacement much easier.
3. Unique hydraulic device design is convenient for operators to
open the chassis, replace accessories, and adjust the discharge
gate.
4. The simple structure of impact frame and grinding frame has the
advantages of easy operation, convenient maintenance and low cost.
Technical Parameters
| Model | Max Feed edge(mm) | Capacity(t/h) | Motor power(kW) | Weight(Excluding Motor)(t) |
| with grinding cavity | without grinding cavity |
| CHP4939(A) | 500 | 90-160 | 110-132 | 14.696 | 13.596 |
| CHP4955(A) | 500 | 100-260 | 132-200 | 17.43 | 16.12 |
| CHP5159(A) | 600 | 180-300 | 200-250 | 21.2 | 22.12 |
| CHP5559(A) | 650 | 220-450 | 250-315 | 27.046 | 25.438 |
| CHP5979(A) | 700 | 250-550 | 400-440 | 36.45 | 34.3 |
| CHP6379(A) | 800 | 300-600 | 440-560 | 55.5 | 42.3 |
| CHP7179(A) | 1000 | 500-850 | 630 | 84.1 | 78.9 |
| CHP7998(A) | 1200 | 800-1200 | 1250 | 111.5 | 101.2 |
| CHS4528(A) | 250 | 40-70 | 37-55 | 11.8 | 10.98 |
| CHS4539(A) | 300 | 70-100 | 55-75 | 14.4 | 13.47 |
| CHS4939(A) | 350 | 100-180 | 110-132 | 14.696 | 13.596 |
| CHS4955(A) | 350 | 150-290 | 132-200 | 17.43 | 16.12 |
| CHS5159(A) | 400 | 180-350 | 200-250 | 21.05 | 22.04 |
| CHS5559(A) | 450 | 250-450 | 250-315 | 27.046 | 25.438 |
| CHS5979(A) | 500 | 280-550 | 400-440 | 36.7 | 34.6 |
| CHS6379(A) | 600 | 300-600 | 440-560 | 56.4 | 43.5 |
| CHS7179(A) | 700 | 500-850 | 630 | 84.1 | 78.9 |
| CHS7998(A) | 1000 | 700-1100 | 1250 | 115.6 | 109.5 |
Note:
The capacity is total tons per hour passing through crusher at open
circuit when crushing medium and low hardness materials with the
bulk density of 1.6x10³kg/m³. Capacity is relative to physical
character, feeding type, feeding size, composition, etc.
