Spring CS Cone Crusher Overload Protective System High Grade Final
Products, Cs Series Iron Ore Crusher Machine
Product Description

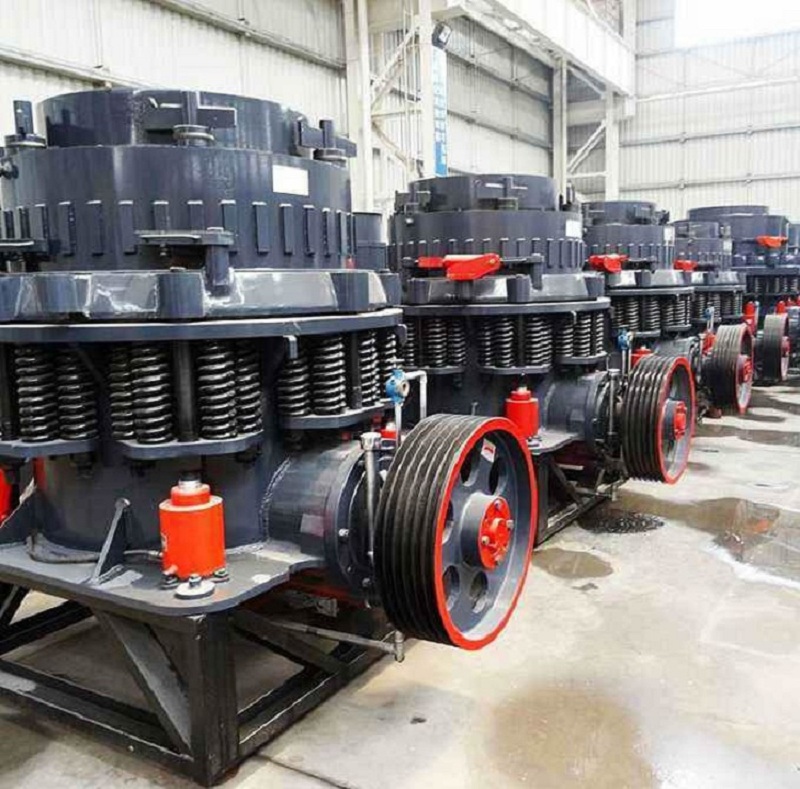

Comparing with other kinds of crushers, CS Series spring cone
crusher is quite excellent in hard material crushing and the final
product has good sharp. The innovations like stable lubrication
system and excellent sealing system evidently reduce the production
cost, helping you to achieve the highest level of profitability.
Features
1. High yields and high grade final products.
2. With grease seal and upstage sealing element imported from
Japan, provide sturdy guarantee for long-playing stable operation
of machine.
3. Overload protective system can effectively ensure safety of
crusher.
4. Easy to control discharging size by using different crushing
cavity and adjusting device.
Application
CS series spring cone crusher is applied to cement mill, mining,
building construction, road &bridge construction, railway
construction and metallurgy and some other industries. Materials
like iron ore, granite, limestone, quartzite, sandstone,
cobblestone and some others are easily crushed by cone crusher.
Technical Parameters
| Model | Movable Cone Diametermm (inch) | Chamber Style | Opening Side | Closed Side | Discharging Opening (mm) | REV (r/min) | Power (kw) | Motor Model | Capacity (t/h) | Machine Size (mm) |
| Max.Feeding (mm) |
| CSB75 | 900 (3′) | medium | 83 | 102 | 9-22 | 580 | 6-75 | Y315S-6/75 | 45-91 | 2821×1880 ×2164 |
| coarse | 159 | 175 | 13-38 | 59-163 |
| CSD75 | 914 (3′) | fine | 13 | 41 | 3-13 | 580 | 6-75 | Y315S-6/75 | 27-90 | 2821×1880 ×2410 |
| medium | 33 | 60 | 3-16 | 27-100 |
| coarse | 51 | 76 | 6-19 | 65-140 |
| CSB160 | 1295 (4 1/4′) | fine | 109 | 137 | 13-31 | 485 | 6-185 | Y355M2-6/185 | 109-181 | 2800×2342 ×2668 |
| medium | 188 | 210 | 16-31 | 132-253 |
| coarse | 216 | 241 | 19-51 | 172-349 |
| CSD160 | 1295 (4 1/4′) | fine | 29 | 64 | 3-16 | 485 | 6-160 | Y355M1-6/160 | 36-163 | 2800×2342 ×2668 |
| medium | 54 | 89 | 6-16 | 82-163 |
| coarse | 70 | 105 | 10-25 | 109-227 |
| CSB240 | 1650 (5 1/2′) | fine | 188 | 209 | 16-38 | 485 | 6-240 | | 181-327 | 3911×2870 ×3771 |
| medium | 213 | 241 | 22-51 | | 258-417 |
| coarse | 241 | 268 | 25-64 | | 299-635 |
| CSD240 | 1650 (5 1/2′) | fine | 35 | 70 | 5-13 | 485 | 6-240 | | 90-209 | 3917×2870 ×3771 |
| medium | 54 | 89 | 6-19 | | 136-281 |
| coarse | 98 | 133 | 10-25 | | 190-336 |
| CSB400 | 2134 (7′) | fine | 253 | 278 | 19-38 | 435 | 6-400 | | 381-726 | 5200×4300 ×4700 |
| medium | 303 | 334 | 25-51 | | 608-998 |
| coarse | 334 | 369 | 31-64 | | 870-1400 |
| CSD400 | 2134 (7′) | fine | 51 | 105 | 5-16 | 435 | 6-400 | | 190-408 | 5200×4300 ×4700 |
| medium | 95 | 133 | 10-19 | | 354-508 |
| coarse | 127 | 178 | 13-25 | | 454-599 |
