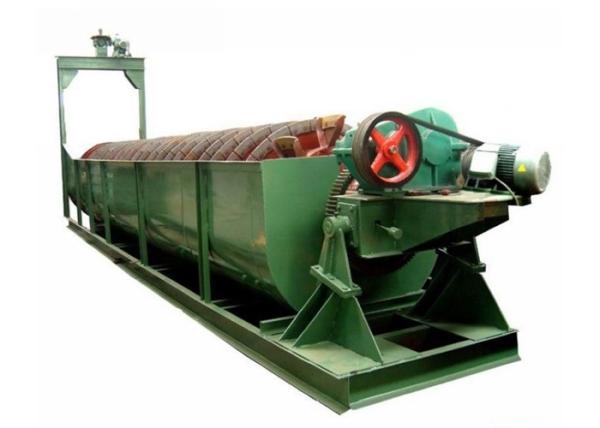

    High Capacity Ore Washing Machine Spiral Sand Washing Machine AC Motor

    Ask Lasest Price
    Brand Name : YK
    Model Number : XS1500
    Certification : iso9001
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : Within 30 days after receipt of the equipment's deposit
    • Product Details
    • Company Profile

    High Capacity Ore Washing Machine Spiral Sand Washing Machine AC Motor

    High Capacity Professional Spiral Sand Ore Washing Machine, Sand And Gravel Washing Equipment, Sand Washer


    Product Description


    Spiral sand ore washing machine is the professional sand washing machine developed on the basis of previous technology and combined with the actual situation of sand and gravel industry. It is a high-efficiency sand washer which can separate the excess powder and mud and so on in the raw material. When the machine is working, the sand will grind each other under the driving of the impellers. In this way it can not only remove the impurities wrapped on the surface of the sand, but also destroy the vapor layer wrapped around the sand, and completes the impurity cleaning processing in powerful water flow.



    Advantages


    Long service life and low maintenance cost.

    • The loss of medium and fine sand is minimized, and the grade and fineness can meet the required standard.
    • The bearing device of impeller drive is separated from water and materials in water, which greatly protects the bearing from soaking, sand and pollutants.
    • Its novel sealed structure, totally-enclosed oil-bath transmission system, and adjustable overflow slice ensure the characteristics of high efficiency, durability, cleanness, and good dehydrating effect, and reliable product size.


    Working Principle


    The sand washer is developed according to the principle of different particles with different fall velocities because of their sizes and densities. Fine particles float in the water and form the overflow; coarse particles fall down to the bottom of the trough and are pushed to the top port by the impellers and discharge. During working, the motor drives the impellers to rotate slowly by triangle belt, decelerating motor and gears. Sand enters the washing trough from the fed trough, roll and grind each other under the driving of impellers. Then wrapped impurity around the sand surface is removed and the vapor layer is destroyed at the same time. While the impurities and dirt is removed by the added water flow, cleaned material is conveyed upward by the rotating impellers to the discharge chute.



    Technical Parameters


    ModelXS1500XS2000XS2400XS3000
    Screw Diameter(mm)750*21000*21200*21500*2
    Capacity (t/h)60-8080-150150-220180-280
    Power (kw)7.5*211*215*222*2
    Dimensions L*W*H (m)9.6*1.75*1.59.6*2.25*2.210.3*2.65*2.410.5*3.35*2.8
