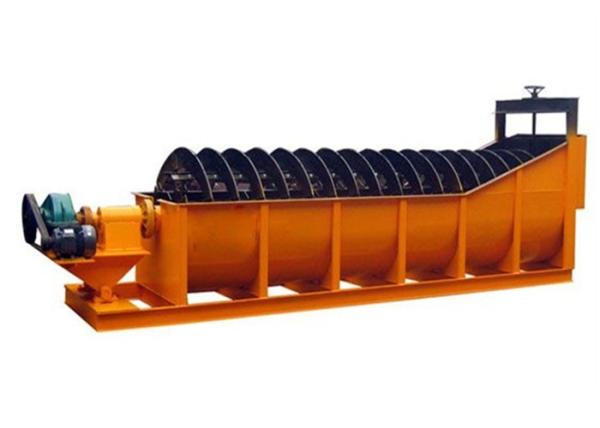

    Spiral Sand Ore Washing Machine Sand Cleaning Machine 10 - 20t/H Capacity

    Ask Lasest Price
    Brand Name : YK
    Model Number : XSL0550
    Certification : iso9001
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : Within 30 days after receipt of the equipment's deposit
    • Product Details
    • Company Profile

    Spiral Sand Ore Washing Machine Sand Cleaning Machine 10 - 20t/H Capacity

    Spiral Sand Ore Washing Machine, High Capacity Spiral Sand Stone Washing Machine For Water Washing And Dewatering


    Brief Introduction


    Spiral sand stone washing machine is mainly used in sand factory, electric pole factory, construction site and concrete dam to wash, classify and dewater various sand. It is a kind of water washing style equipment to be matched with sand making machine and can reduce the dust and stone powder which mix with final sand, so sand washing machine can improve the quality of sand.



    Main Features


    • Heavy steel plate construction
    • Durable and long life
    • Oil lubricated heavy duty gear box designed by Constmach experts
    • Large operating service factor resulting in long life cycle
    • Replaceable bolted cast white iron wear shoes
    • Single or twin shaft configurations



    Advantages


    1. High efficiency, reasonable structure, high capacity and low consumption.

    2. Long service life and low maintenance cost.

    3. Compared with other sand washing machine, the loss of medium and fine sand is minimized, and the grade and fineness can meet the required standard.

    4. The bearing device of impeller drive is separated from water and materials in water, which greatly protects the bearing from soaking, sand and pollutants.



    Technical Parameters


    Model

    Spiral diameter

    (mm)

    Trough length

    (mm)

    Capacity

    (t/h)

    Power

    (kW)

    Overall dimension

    L×W×H(mm)

    Weight

    (t)

    XSL0550500500010-2036540×1220×16302.5
    XSL0765750650020-505.58380×1570×19204.3
    XSL10751000750050-807.59550×1920×22706.7
    XSL12751200750070-110119700×2320×266010.8
    XSL15851500850090-13018.511000×2830×315013.7
    XSL188518008500110-1502211100×3320×362015.4
    XSL208520008500130-1702211340×3670×388019
