Impact Crusher Station, Mobile Impact Crusher for Sale, Mobile
Crushing Equipment, Crawler Type Impact Crusher Station

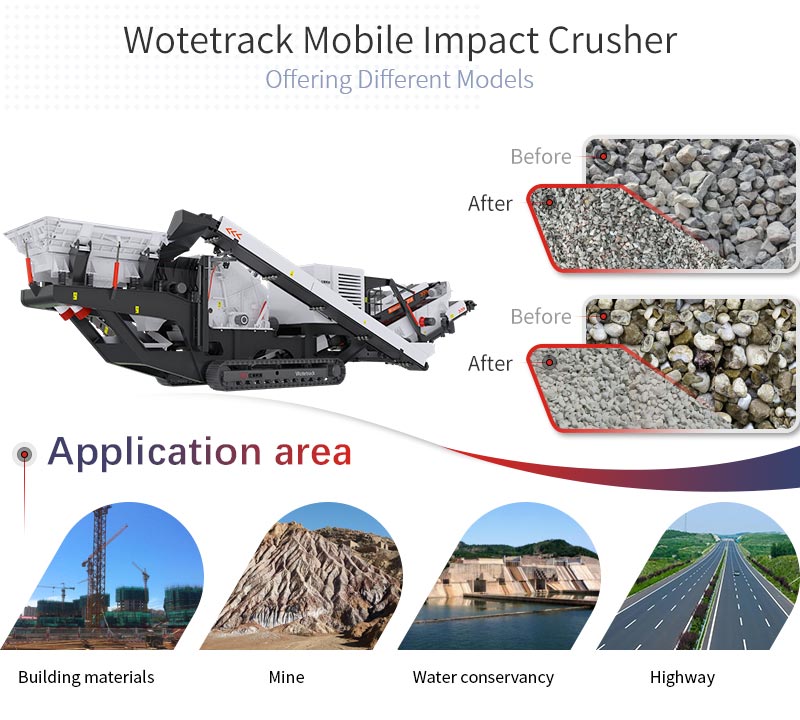

Application fields: mining, stone mining, highway (railway) construction, urban
construction waste treatment, etc.
Product Introduction
Crawler type impact crusher station are renown for their
versatility and capabilities in the reduction and sizing of soft to
medium natural granite and limestone and non-abrasive materials as
well as recycling construction demolition waste.
Features
1. Closed or open circuit processes available
2. Single unit for primary and secondary applications
3. Processing of medium-hard stone like limestone
All rock-based demolition materials: bricks, concrete, asphalt.
Advantage and Benefits
Mobile impact crusher plant with the advantages of free foundation,
easily move to different work sites, closes to crushing site, low
transportation cost.
1.High Quality Impact Crusher
Reinforced impact crusher, double and three cavity impact crushers,
all can be freely set from coarse crushing to fine crushing in
accordance with the different processing requirements.
2.High Quality Thick Steel Frame Structure
High quality thick steel frame structure makes mobile crushing
plant run smoothly, extending equipment’s service life.
3.Self-load Belt Conveyor
4.Vehicle-mounted Electronic Control Configuration
Vehicle-mounted electronic control configuration, space-saving,
easy manipulation.
Technical Parameters
| Model | WT110 | WT110S | WT1213 | WT1213S | WT1315 |
| Dimensions of Transmission Devices | Length | 14000mm | 16000mm | 15500mm | 19000mm | 17000mm |
| Width | 3000mm | 3200mm | 3200mm | 3600mm | 3200mm |
| Height | 3600mm | 3600mm | 3800mm | 3800mm | 3800mm |
| Weight | 40t | 45t | 53t | 60t | 65t |
| Feeder | Hopper Volume | 3m³ | 3m³ | 5m³ | 5m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | 3900mm | 4100mm | 4000mm |
| Primary Screen | Power | 5.2kw | 5.2kw | 6.12kw | 6.12kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | 1140×924mm | 1140×924mm | 1240×930mm |
| Crusher | Model | CI1110M | CI1110M | CI1213M | CI1213M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | 1320×900mm | 1320×900mm | 1540×900mm |
| Max.Feeding Size | 400mm | 400mm | 500mm | 500mm | 600mm |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 0.8m³ | 1m³ | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | 5.2kw | 5.2kw | 6.12kw |
| Unearthed Belt Conveyors | Dimensions(Width×Length) | 650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | 2200mm | 2200mm | 2400mm |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×8500mm | 1000×8500mm | 1000×9900mm | 1000×9900mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | 3500mm | 3500mm | 3800mm |
| Secondary Screen | Power | ○ | 6.12kw | ○ | 6.12kw | ○ |
| Sieve Dimensions | ○ | 1500×3600 | ○ | 1500×4200 | ○ |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | ○ | 1000×5800mm | ○ | 1000×6200mm | ○ |
| Dumping Height | ○ | 2900mm | ○ | 3000mm | ○ |
| Transferring Belt Conveyor | Dimensions(Width×Length) | ○ | 650×2500mm | ○ | 650×2800mm | ○ |
| Dumping Height | ○ | 1400mm | ○ | 1400mm | ○ |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | ○ | 500×8000mm | ○ | 500×9200mm | ○ |
| Dumping Height | ○ | 4200mm | ○ | 4500mm | ○ |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 106kw | 106kw | 132kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins |
| The Main Machine | Power | 253kw | 274kw | 304kw | 324.4kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) |
For customization, please contact us.
