Cone Crusher Station Mobile Crushing Plant, Mobile Cone Crusher
Plant for Sale, Limestone Crushing Plant
Product Description

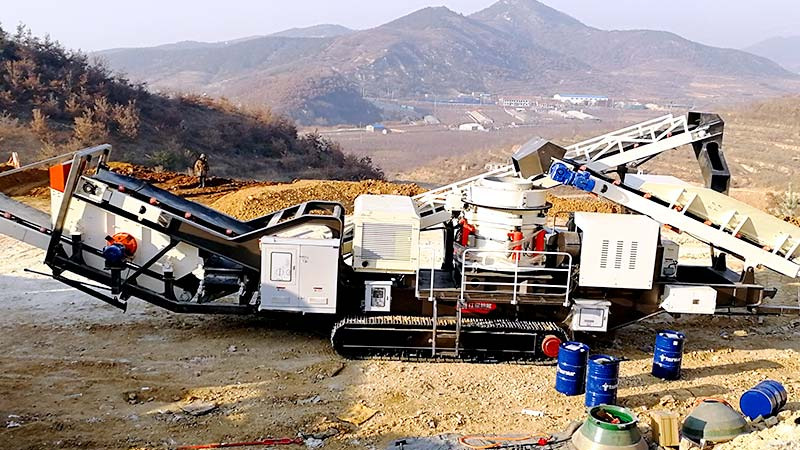

Combined Mobile Cone Crusher Plant is an integration of new type
energy-saving, efficient crusher in the international advanced
level. Modular design, excellent combination, intelligent wireless
operation, low cost and efficient operation. We put the site
design, environmental protection, easy to transport, and saving
energy as the primary problem to be resolved, providing customers
with the best technology of crushing solution. With high performance, high reliability and attractive appearance, the Combined Mobile Cone Crushing Plants has reached the
international advanced level.
Applications
Application Fields
Wotetrack cone crusher station is widely applied in metallurgical,
construction, road building, chemical and phosphatic industry.
Applied Materials
Wotetrack cone crusher station is suitable for hard and mid-hard
rocks and ores, such as iron ores, copper ores, limestone, quartz,
granite, gritstone, etc.
Features
1. Incorporated design.
2. Truck mounted.
3. Quick road transportation.
4. With support legs on truck, quick to set-up.
5. Maneuverability.
Performance Characteristics
1. The crushed materials are of equal size,thus reducing
circulating load.
2. Large and medium-sized crushers adopt hydraulic chamber-cleaning
systems, which will help reduce the down time.
3. Cone crushers with different chambers are available, to meet our
customers' requirements.
Technical Parameters
| Model | WT160SC | WT250SC | WT300HPM | WT400HPM |
| Dimensions of Transmission Devices | Length | 16800mm | 19000mm | 19000mm | 19500mm |
| Width | 3500mm | 3600mm | 3900mm | 3900mm |
| Height | 3700mm | 3800mm | 3800mm | 3800mm |
| Weight | 50t | 60t | 55t | 65t |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ | 3m³ | 3m³ |
| Loading Height | 2600m | 2600m | 2600m | 2800m |
| Loading Width | 1900mm | 1900mm | 1900mm | 1900mm |
| Dimensions(Width×Length) | 1000×6300mm | 1000×6300mm | 1000×6300mm | 1200×6500mm |
| Crusher | Model | SC160 | SC250 | HP300 | HP400 |
| Inlet Dimensions | 75-360mm | 75-450mm | 60-200mm | 68-280mm |
| Max.Feeding Size | 360mm | 450mm | 200mm | 280mm |
| Min. Discharging Size | 8-25mm | 8-35mm | 8-45mm | 8-51mm |
| Main Belt Conveyor | Dimensions(Width×Length) | 1000×9000mm | 1000×10000mm | 1000×10000mm | 1000×11000mm |
| Dumping Height | 3100mm | 3490mm | 3490mm | 3690mm |
| Secondary Screen | Dumping Height | 4200mm | 4200mm | 4400mm | 4400mm |
| Model | HX1536 | HX1536 | HX1536 | HX1536 |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | 1500×3600mm | 1500×3600mm |
| Belt Conveyors at the Bottom | Dimensions(Width×Length) | 1000×5600mm | 1000×5600mm | 1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3020mm | 3020mm | 3300mm |
| Belt Conveyors to the Sieve | Dimensions(Width×Length) | 650×2100mm | 650×2100mm | 650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | 1370mm | 1370mm |
| Belt Conveyors for Discharging Material | Dimensions(Width×Length) | 650×10000mm | 650×10000mm | 650×11000mm | 650×11000mm |
| Dumping Height | 4200mm | 4200mm | 4400mm | 4400mm |
| Diesel Engine | Power | 96kw | 132kw | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins |
| The Main Machine | Power | 207.12kw | 297.12kw | 267.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) |
For customization, please contact us.
