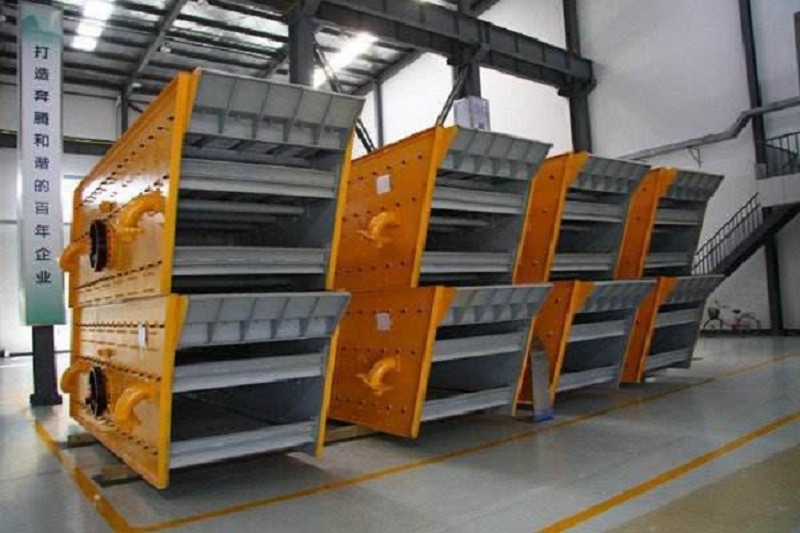

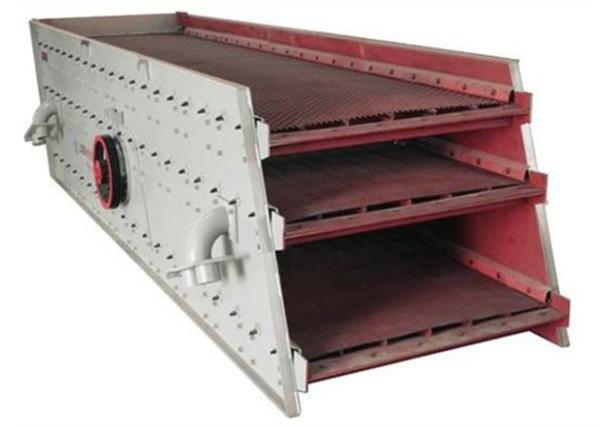

TES Series Triaxial Elliptical Vibrating Screen For Mobile Screening Plants, Three Axis Vibrating Screen

Product Description

TES Series Triaxial Elliptical Vibrating Screen adopts advanced vibrating screen technology, reaches international level. It occupies small space for horizontal installation, which makes it widely apply to metallurgy, construction, transportation industries. It is the most ideal equipment for mobile screening plants.

Features

1. High capacity, high screening efficiency;

2. Moving track of the screening machine is elliptical, movement is stable, with low power consumption;

3. Double amplitude (15-19mm), vibration direction angle (30°-60°), vibration frequency (645-875r/min) is adjustable, adjustment is convenient; materials screening is smooth, not easy to be plugged, blocked.

Advantages

1. Three axises drive can make the screen machine produce ideal elliptical movement, it possesses advantages of circular vibrating screen and linear vibrating screen, and the elliptical track and amplitude is adjustable, the vibrating track can be selected according to actual material, it possesses advantages for dealing with material hard for screening;

2. Three axises drive compels synchronous vibration, which help the screen machine get stable working status, it is advantageous for processing large capacity screening;

3. Three axises drive improves stress state of screen frame, alleviates load of single bearing, side plate has even force, decrease hard spot, improve stress conditions of screen frame, improve reliability and life of the screen machine, lay a theoretical foundation for upsizing of screen;

4. Horizontal installation effectively decreases height of machine set, which can perfectly meet requirements of large and middle size mobile screen set;

5. The bear shall be lubricated by thin oil, effectively decreases bear temperature, lengthens it’s life;

6. With the same screening area, capacity of elliptical vibrating screen can increase 1.3-2 times.

Structure

Composted of motor, rotation device, vibration exciter, screening box, rubble spring, under-bed, damper, etc.

Working Principle

Power is transferred through triangle belt to driven shaft of exciter, gear vibrator (speed ratio is 1), realize three axis rotate with the same speed, produce exciting force, be connected with bolt intensively, produce elliptical movement. The materials move speedily with the screening plant on the surface of the screen, quickly layered, through screen, forwarded, finally finish grading of materials.

Technical Parameters
