Small Mining Rock Crusher Hard Rock Mining Equipment 5 - 10 T/H
Capacity

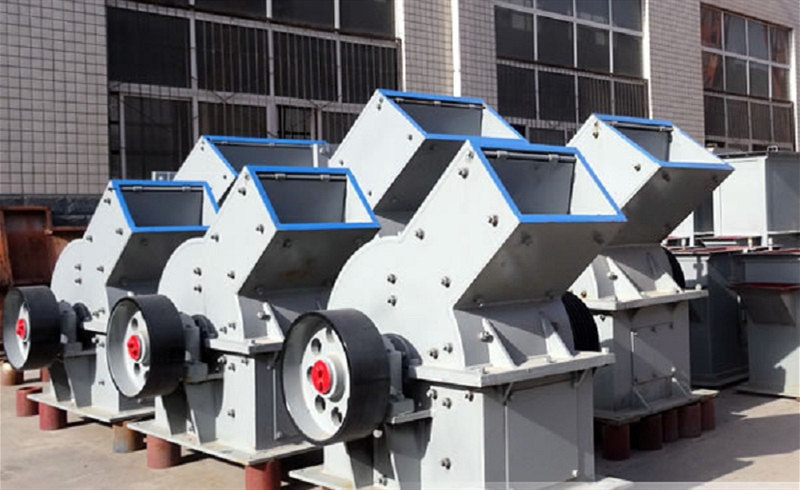

Product Introduction
Hammer crusher is applicable for various hard and fragile
materials, such as limestone, coal, salt, gypsum, alum, brick and
tile, etc. The compressive strength of materials should not be in
excess of 150 Mpa. Hammer crusher is mainly used in industries such
as cement, coal separation, electricity generation, building
materials and compound fertilizer, etc. Hammer crusher can crush
materials with different sizes into equal particle, which can make
the next procedure more smooth.
Working Principle
It spins at a high speed inside the drum while material is fed into
a feed hopper. The material is impacted by the hammer bars and is
thereby shredded and expelled through screens in the drum of a
selected size. The hammer crusher can be used as a primary,
secondary, or tertiary crusher.
Features
1. High crushing ratio.
2. The granularity can be adjusted according to the requirement of
customers.
3. Reduce the cost by 40%, energy consumption, and investment.
4. Simple structure and lightweight, easy operation and
maintenance.
5. Single molding without secondary crushing.
Factory Price
The hammer crusher is a common selected equipment for small-scale
sand and gravel crushing. The investment cost of the equipment is
low and the revenue recovery is fast. The price of hammer crusher
is affected by many factors. Different manufacturers of different
types of hammer crusher will give different quotes. Our company is
currently a professional manufacturer of hammer crushers in China.
You can chat online with our service staff or send email to 15333827088@163.com at any time to get more detailed information.
Technical Parameters
| Model | Feed size
(mm) | Discharge size
(mm) | Capacity
(T/H) | Motor
(KW) | Weight
(T) |
| PC 400x300 | < 100 | < 10 | 5 to 10 | 11 | 0.8 |
| PC 600x400 | < 120 | < 15 | 10 to 25 | 18.5 | 1.5 |
| PC 800x600 | < 120 | < 15 | 20 to 35 | 55 | 3.1 |
| PC 1000x800 | < 200 | < 15 | 20 to 40 | 90 | 7.9 |
| PC 1000x1000 | < 200 | < 15 | 30 to 70 | 132 | 8.7 |
| PC 1250x1250 | < 250 | < 25 | 50 to 100 | 185 | 10.5 |
| PC 1300x1200 | < 250 | < 30 | 60 to 150 | 240 | 13.6 |
| PC 1400x1400 | < 280 | < 30 | 120 to 170 | 280 | 16.2 |
| PC 1600x1600 | < 350 | < 30 | 200 to 280 | 450 | 19.6 |
